Gruppo Altea

RPM-111

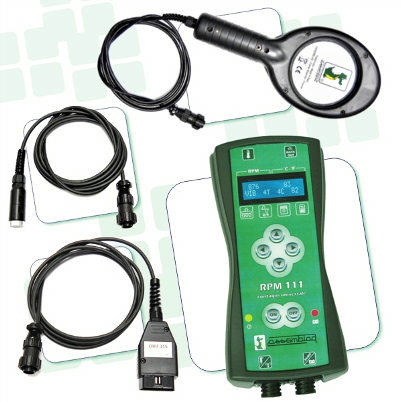

Multi-mode universal engine RPM meter

Universal battery-operated multi-mode engine RPM meter (tachometer) with OBD interface and oil temperature probe.

Suitable for measuring engine RPM (speed) on 2- and 4-stroke 8-cycle engines and Diesel engines-equipped vehicles of any kind.

Equipped with built-in lcd display, Bluetooth and usb interface, the RPM-111 can be used either as a stand-alone RPM meter or in conjunction with gas analyser and smoke meter for emission test.

Approved for statutory test. Recommended for pre-check, diagnostics and repair.

RPM-111

Download Depliant




Data and characteristics are subject to change without prior note. Please ask your Distributor to confirmation

   MAIN FEATURES:

  • Universal engine RPM meter (tachometer) for 2- and 4-stroke 8-cycle engines and Diesel engines-equipped vehicles of any kind.
  • Built-in lcd display for stand-alone operation.
  • Multi-mode measurement by means of knock sensor (accelerometer), battery ripple, Radio antenna (*) and OBD (*).
  • Battery-operated and built-in Bluetooth interface for full wireless operations.
  • Suitable to be used in conjunction with Gas Analyser and Smoke meter for engine speed-driven emission tests.
  • Compatible with ASSEMBLAD emission test software.
  • Hand held, light, shock-proof casing.


 Approvals:

OM00664f/NET2



MeasureRangeResolution
Engine RPM0 ÷ 9999 rpm
1 rpm/1'
Oil Temperature
0 ÷ 150 °C
1 °C

Power and size
Power supply10 ÷ 28 Volt DC
Weight365 g
Dimensions  (LxHxP)
100x220x40mm
