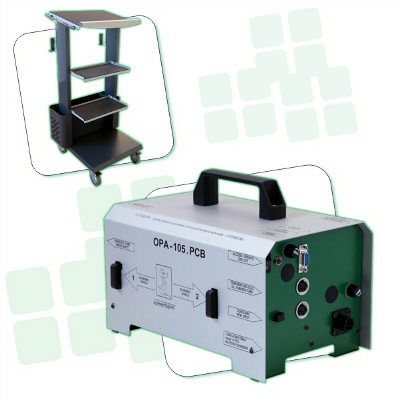

OPA-105.PCB


Battery-operated partial-flow Smoke Meter Module

Suitable for testing smoke and opacity emission of Diesel engine-equipped vehicles of any kind.

Available as full version for heavy-duty emission tests or as light version for pre-check, diagnostic and repair.

Powered by ASSEMBLAD OPA-KING ready-for-working temperature-controlled smoke bench.

To be used in conjunction with external pc running ASSEMBLAD software or connected to ASSEMBLAD Gas Analyzer for stand-alone combi emission test station.

Approved for statutory tests. Recommended for heavy-duty use.

OPA-105.PCB


Download Depliant

Data and characteristics are subject to change without prior note. Please ask your Distributor to confirmation

   MAIN FEATURES:

  • Available as light version or full version including smoke shut-off valve.
  • Capable to run any emission test procedure on Diesel engine-equipped vehicles of any kind.
  • User-selectable operating modes: free acceleration, continuous, loaded, etc.
  • ASSEMBLAD Service software available for remote monitoring.
  • Battery-operated, light, handy and portable.
  • Automatic zeroing function (typical 15 sec.).
  • Fast warm-up time (typical 5 minutes) at power-on only.
  • Easy and quick maintenance and calibration.


Approvals:

OM00538EST002b/NET2


MeasureRangeResolution
Opacity0 ÷ 9,99 (m-1)
0,01 (m-1)
Smoke
0 ÷ 9,99 %
0,1 %
Smoke temp.
0 ÷ 100 °C
0,1 °C
Bench temp.
0 ÷ 100 °C
0,1 °C
RPM (*)0 ÷ 9999 rpm
1 rpm/1′
Oil Temp.(*)
0 ÷ 130 °C
0,1 °C
(*) OPTIONAL



Power and size
Power supply12V DC or 220V AC
Weight5.5 Kg
Dimensions (LxHxP)
290x198x175mm
